application : Indoor, Outdoor
aspect ratio : 16:9/4:3/Customized
Screen Type : Led
warranty : 3 Years, 5 year, 1 Year
Model Number : SLED-ZN 5050 26/S
Brand Name : SHENGLONG
Place of Origin : Henan, China
brightness : 5000cd
color : RGB
Color Depth : Supports adjustable 0-24 bits
Content Management System : Support
Contrast Ratio : 10000:1
Dimensions : 500*500, 500*1000
Display Function : Flat display
function : SDK
installation type : Wall hanging, hoisting, and vertical installation
ip rating : IP65
lifespan (hours) : 100000h
media available : Datasheet, Photo, EDA/CAD Models
Operating Temperature : -20℃~60℃
Operation System : Backlight
Pixel Density : 148225/113569
Pixel Pitch : P3.91, P2.6, P2.9
Remote Device Management : Support
resolution : 192*192/168*168/128*128/192*384/168*336/128*256
specification : Video Wall
Storage : Customized
supplier type : OEM, ODM, Original Manufacturer
Usage environment : Indoor, Outdoor
use : stage event
view angle(h/v) : H.140°/V.140°
Voltage : 110/220V
Certificate : CE/CCC/FCC/ROHS/ISO9001/PSE
MOQ : 1 piece
Price : $515-982 / piece
| Product Model | P2.6 | P2.9 | P3.9 | P2.9 | P3.9 | P4.81 | ||||||
| Pixel Pitch | 2.604mm | 2.9mm | 3.91mm | 2.9mm | 3.91mm | 4.81mm | ||||||
| Density (dots/㎡) |
147,456 | 112,896 | 65,536 | 112,896 | 65,536 | 43,222 | ||||||
| Module Pixel | 96*96 | 84*84 | 64*64 | 84*84 | 64*64 | 52*52 | ||||||
| Cabinet Pixel | 192*192 | 168*168 | 128*128 | 168*168 | 128*128 | 104*104 | ||||||
| Module Size (mm) | 250*250mm | 250*250mm | ||||||||||
| Cabinet Size(mm) | 500*500*70mm | 500*500*70mm | ||||||||||
| Brightness | ≥1000cd | ≥4500cd | ||||||||||
| Max Power (w/m2) |
480w/㎡ | 650/245w/㎡ | 550/185/730/245w/㎡ | 550/185/730/245w/㎡ | ||||||||
| Maintenance | Front | Front | ||||||||||
| Power Input | 100-240v AC 50-60Hz | 100-240v AC 50-60Hz | ||||||||||
| Working Humidity | -20~+45 | -20~+45 | ||||||||||
| Refresh Rate(Hz) | 3840Hz | 3,840Hz | ||||||||||
| Signal Input | S-Video/VGA/DVI/HDMI/SDI | S-Video/VGA/DVI/HDMI/SDI | ||||||||||
|
Note: Due to the large number of product sizes, only some products are listed for reference. Please contact us for other sizes. |
||||||||||||
|
|

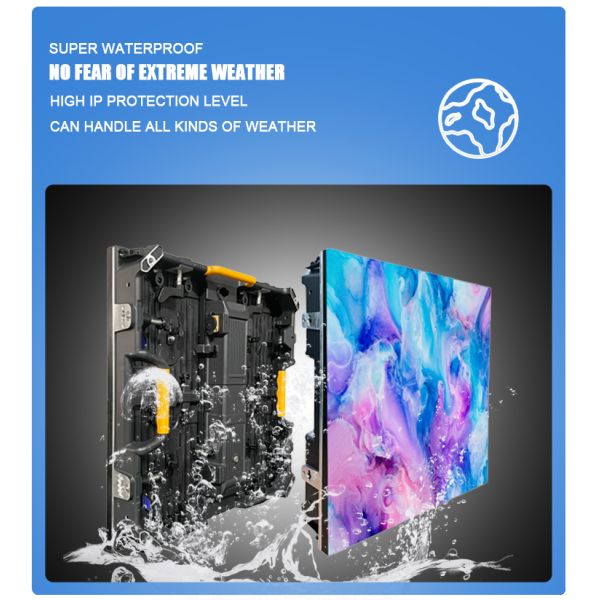

P2.6 P2.9 P3.9 Rental Video Wall Display High Definition LED Panel Screen for Outdoor Indoor Concert Stage Images |
